DESCRIPTION

This specific pin is used when locking action is not required. Great for using as an additional pin to support a fixture with a locking pin in one hole and locating pin in another.

MEASUREMENTS DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.

DESCRIPTION
This specific pin allows you to make any fixture magnetised. Great for sheeties!
Magnetic force: 15KG per pin.

Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

MEASUREMENTS DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.

DESCRIPTION

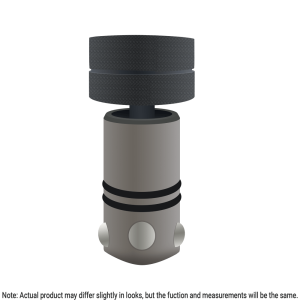

These Ball Lock Pins are arguably the most necessary product for your modular KO Welding Tables set up.

Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

Therefore this Ball-Lock Pin allows you to attach any one fixture to your table (toggle clamps/stops/angles/large angles/blocks). Or with creativity: any two fixtures together. True meaning of modular!

MEASUREMENTS DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.
3. Twist top by hand to lock (an allan key or hex impact bit is used for a super tight lock).

DESCRIPTION
This specific pin allows you to lock any two 25mm materials together. Featuring a Countersink Bolt - allowing to sit flush on top side of your fixture, great for tight spots where a standard Locking Pin cannot be achieved.

Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

Therefore this Ball-Lock Pin allows you to attach any one fixture to your table (toggle clamps/stops/angles/large angles/blocks). Or with creativity: any two fixtures together. True meaning of modular!

MEASUREMENTS DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.
3. Twist top by hand to lock (an allan key or hex impact bit is used for a super tight lock).

DESCRIPTION
This specific pin allows you to lock any two 25mm materials together.
Featuring double countersink action - allowing to sit flush on top and bottom side of locking pieces, great for tight spots where a standard Locking Pin cannot be achieved.

Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

Therefore this Lock Pin allows you to attach any one fixture to your table (toggle clamps/stops/angles/large angles/blocks). Or with creativity: any two fixtures together. True meaning of modular!

MEASUREMENTS   DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.
3. Twist top by hand to lock (an allan key or hex impact bit is used for a super tight lock).

DESCRIPTION
This specific pin allows you to lock any two 25mm materials together.

Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

Therefore this Pin allows you to attach any one fixture to your table (toggle clamps/stops/angles/large angles/blocks). Or with creativity: any two fixtures together. True meaning of modular!

MEASUREMENTS DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.
3. Twist top by hand to lock (an allan key or hex impact bit is used for a super tight lock).

DESCRIPTION
This specific pin allows you to lock any three 12mm materials together.
Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

Therefore this Long Ball-Lock Pin allows you to attach any two fixture to your table (toggle clamps/stops/angles/large angles/blocks). Or with creativity: any three fixtures together. True meaning of modular!

MEASUREMENTS DIRECTIONS
1. Place fixtures in desired position.
2. Push pin in holes.
3. Twist top by hand to lock (an allan key or hex impact bit is used for a super tight lock).

DESCRIPTION
This specific pin allows you quickly lock anywhere from 30mm to 52mm total.
Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

With a Variable locking capacity shown below these pin allow the use of packing a fixture when necessary.
MEASUREMENTS DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.
3. Twist top by hand to lock (an allan key or hex impact bit is used for a super tight lock).

DESCRIPTION

Same use as our Standard Ball locking pin, but three times faster!

The KO QuickHex Pin is a rapid-locking fixture pin designed for the K28 modular table system. It replaces the Standard Ball Locking Pin and allows fixtures to be secured or released with a single twist - no tools required. Ideal for fast setup workflows when swapping stops, angles, risers and positioning blocks. Even a quick "nip" with your hand is tight enough for most cases (use a 34mm socket or a shifter for a super tight lock) Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness. Therefore this Pin allows you to attach any one fixture to your table (toggle clamps/stops/angles/large angles/blocks). Or with creativity: any two fixtures together. True meaning of modular!

DIRECTIONS
1. Place fixture in desired position.
2. Push pin in holes.
3. Twist top by hand to lock or 34mm socket or a shifter for a tight lock.
