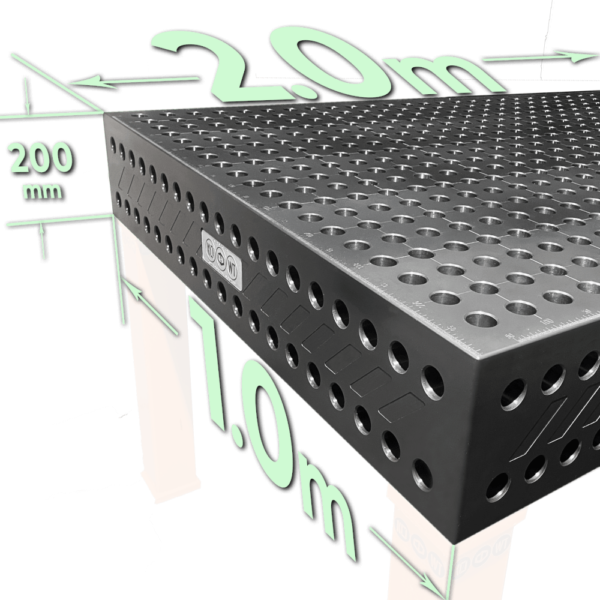

K28 Series Top – 2.0m x 1.0m

Product ID:

K28-TBL-04

Product ID:

K28-TBL-04

$4,263 Ex. GST

$4,263 Ex. GST

CUSTOMISE

INFO

Additional information

Weight 680 kg
Dimensions Length: 1550 mm × Width: 1550 mm × Height: 400 mm
Size (mm):

2000 x 1000

Weight (kg):

~655

Material:

Your choice

TO SEE ALL OF OUR PRODUCTS EASILY:

Description

ALL K28 TABLE TOPS GET A FREE ETCHED RULER UPGRADE!

Millimetre ruler engraved via CNC in the top perimeter around all 4 sides of the table top valued at $100 ex gst.

RULERS shrt

MATERIAL: CAST or STEEL?

1) T300 – CAST IRON

PROPERTIES: Naturally spatter resistant, rougher and a slightly tougher surface. Greater heat dispersion and
etching lines are rougher (see picture below).

HARDNESS: Differs per treatments: Standard / Burnished ~240HV  |   Nitriding ~450HV.

DENSITY: 7.25 g/cm³.

TENSILE STRENGTH: 345 MPa.



COMPARE SURFACE OF MATERIALS:CAST vs STEEL BIG Writing

2) S355 – STEEL

PROPERTIES: Smooth surface, increased hardness (especially with nitriding treatment),
cleaner ruler and grid etchings.

HARDNESS: Differs per treatments: Standard / Burnished ~250HV  |   Nitriding ~550HV.

DENSITY: 7.80 g/cm³.

TENSILE STRENGTH: 355 MPa.



TREATMENT: NONE, BURNISHED or NITRIDING?

1) NONE – No surface treatment, raw material (silver in colour).

BENEFITS: Shiny silver colour.

HARDNESS: Cast Iron ~230HV | Steel ~240HV.


2) BURNISHED – Oxidation treatment (black in colour).

BENEFITS: Rust resistant.

HARDNESS: Cast Iron ~230HV | Steel ~240HV.


3) PLASMA NITRIDING – Ion Nitriding Treatment (black in colour).

BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant.

HARDNESS: Cast Iron ~450HV | Steel ~550HV.


MATERIAL: STANDARD or DIAGONAL?

Standard (left), has a hole spacing of 100mm. Diagonal (right) has an extra hole in the centre of each 4 hole grid, allowing for more possibilities!

KWT 28 both grids 2



TOLERANCES

FLATNESS: ±0.01mm over 1 m².
HOLE DISTANCE: ±0.05mm.

HOLE DIAMETER: +0.05mm.



Questions?
(03) 7020 0234   |   sales@koweldingtables.com.au
