Description

MATERIAL: STEEL (Note: cast is only available for K28 Table tops)

S355 – STEEL

PROPERTIES: Smooth surface, increased hardness (especially with nitriding treatment),
cleaner ruler and grid etchings.

HARDNESS: Differs per treatments: Standard / Burnished ~250HV  |   Nitriding ~550HV.

DENSITY: 7.80 g/cm³.

TENSILE STRENGTH: 355 MPa.

TREATMENT: NONE, BURNISHED or NITRIDING?

1) NONE – No surface treatment, raw material (silver in colour).

BENEFITS: Shiny silver colour.

HARDNESS: Cast Iron ~230HV | Steel ~240HV.


2) BURNISHED – Oxidation treatment (black in colour).

BENEFITS: Rust resistant.

HARDNESS: Cast Iron ~230HV | Steel ~240HV.

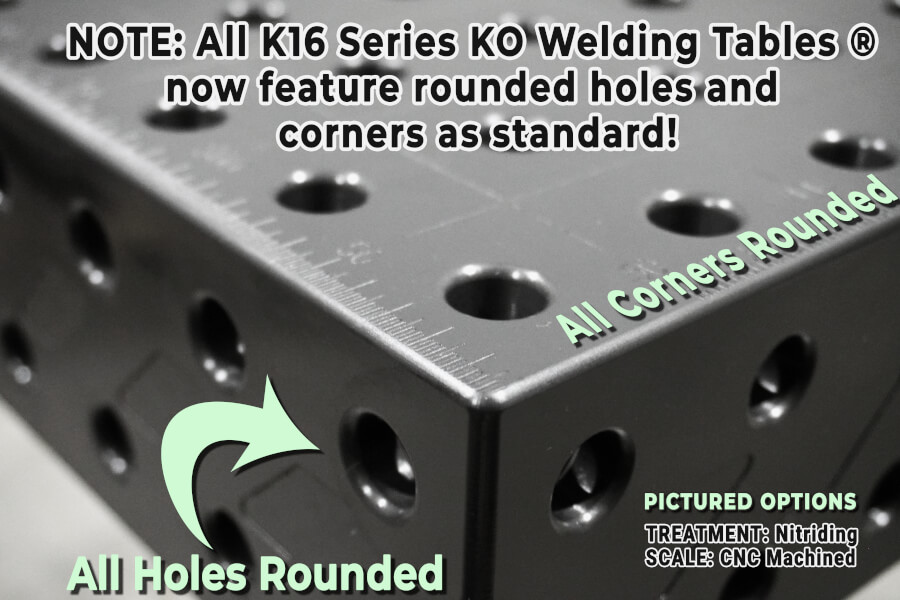

3) PLASMA NITRIDING – Ion Nitriding Treatment (black in colour).

BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant.

HARDNESS: Cast Iron ~450HV | Steel ~550HV.

RULER: NONE or ETCHED?

1) NONE – No etching.

BENEFITS: N/A


2) ETCHED – Millimetre ruler engraved via CNC in the top perimeter around all 4 sides of the table top.

BENEFITS: Easily index fixtures to the same measurement on all sides of the table.

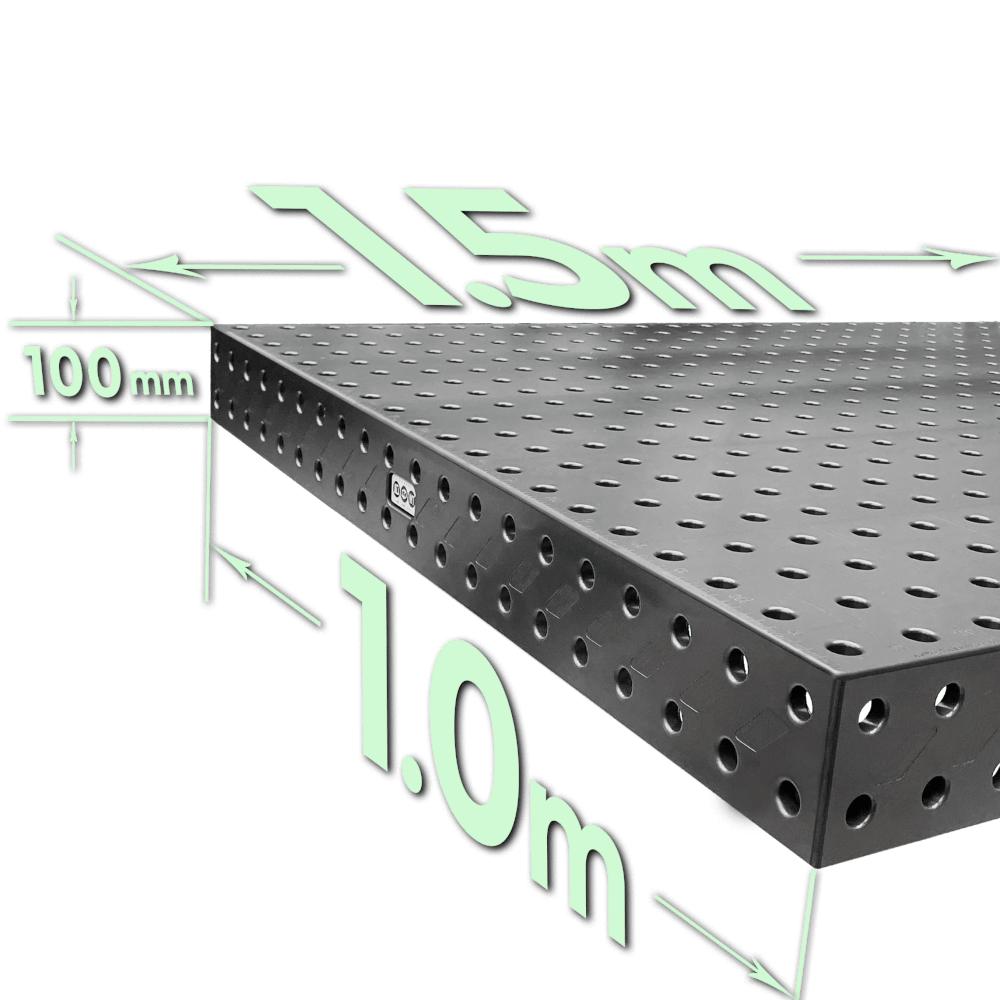

MEASUREMENTS

BORE HOLES: 16mm.

TABLE TOP HEIGHT: 100mm.

PLATE THICKNESS: ~12mm.

GRID(S) AVAILABLE: 50mm – standard.

TOLERANCES

HOLE DIAMETER: +0.05mm.
