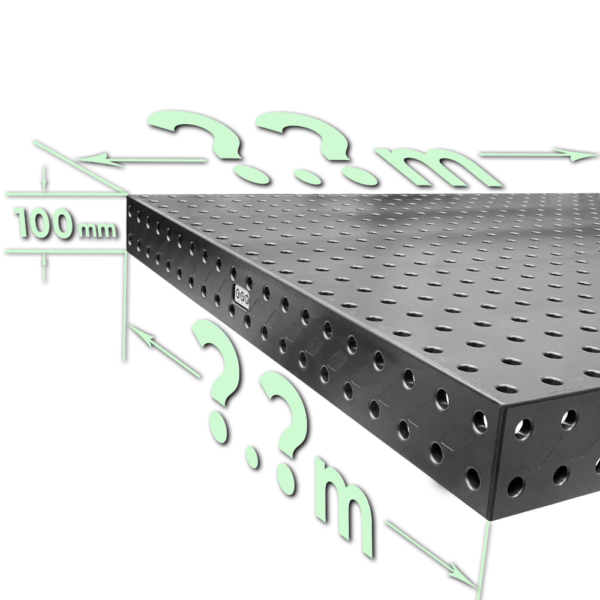

K16 Series Top – Custom Size

Product ID:

K16-TBL-00

Product ID:

K16-TBL-00

$0 Ex. GST

$0 Ex. GST

CUSTOMISE

INFO

Additional information

Custom Size:

In 100mm increments from 1.0m x 0.5m to 2.5m x 1.5m

TO SEE ALL OF OUR PRODUCTS EASILY:

Description

Choose your custom size: In 100mm increments – between 0.5m x 1.0m all the way up to 2.5m x 1.5m!

MATERIAL: STEEL (Note: cast is only available for K28 Table tops)

CAST vs STEEL BIG Writing

2) S355 – STEEL

PROPERTIES: Smooth surface, increased hardness (especially with nitriding treatment),
cleaner ruler and grid etchings.

HARDNESS: Differs per treatments: Standard / Burnished ~250HV  |   Nitriding ~550HV.

DENSITY: 7.80 g/cm³.

TENSILE STRENGTH: 355 MPa.



TREATMENT: NONE, BURNISHED or NITRIDING?

1) NONE – No surface treatment, raw material (silver in colour).

BENEFITS: Shiny silver colour.

HARDNESS: Cast Iron ~230HV | Steel ~240HV.


2) BURNISHED – Oxidation treatment (black in colour).

BENEFITS: Rust resistant.

HARDNESS: Cast Iron ~230HV | Steel ~240HV.


3) PLASMA NITRIDING – Ion Nitriding Treatment (black in colour).

BENEFITS: Huge hardness increase, spatter resistant, heat dispersion, rust resistant.

HARDNESS: Cast Iron ~450HV | Steel ~550HV.


RULER: NONE or ETCHED?

1) NONE – No etching.

BENEFITS: N/A


2) ETCHED – Millimetre ruler engraved via CNC in the top perimeter around all 4 sides of the table top.

BENEFITS: Easily index fixtures to the same measurement on all sides of the table.

MEASUREMENTS

BORE HOLES: 16mm.

TABLE TOP HEIGHT: 100mm.

PLATE THICKNESS: ~12mm.

GRID(S) AVAILABLE: 50mm – standard.

KWT 16 384 px



TOLERANCES

FLATNESS: ±0.01mm over 1 m².
HOLE DISTANCE: ±0.05mm.

HOLE DIAMETER: +0.05mm.



Questions?
(03) 7020 0234   |   sales@koweldingtables.com.au
