Description
KO SeaShell ™ Stops are beautifully machined mm indexing stops designed to make framing and fit-up faster and more precise on a K28 table.

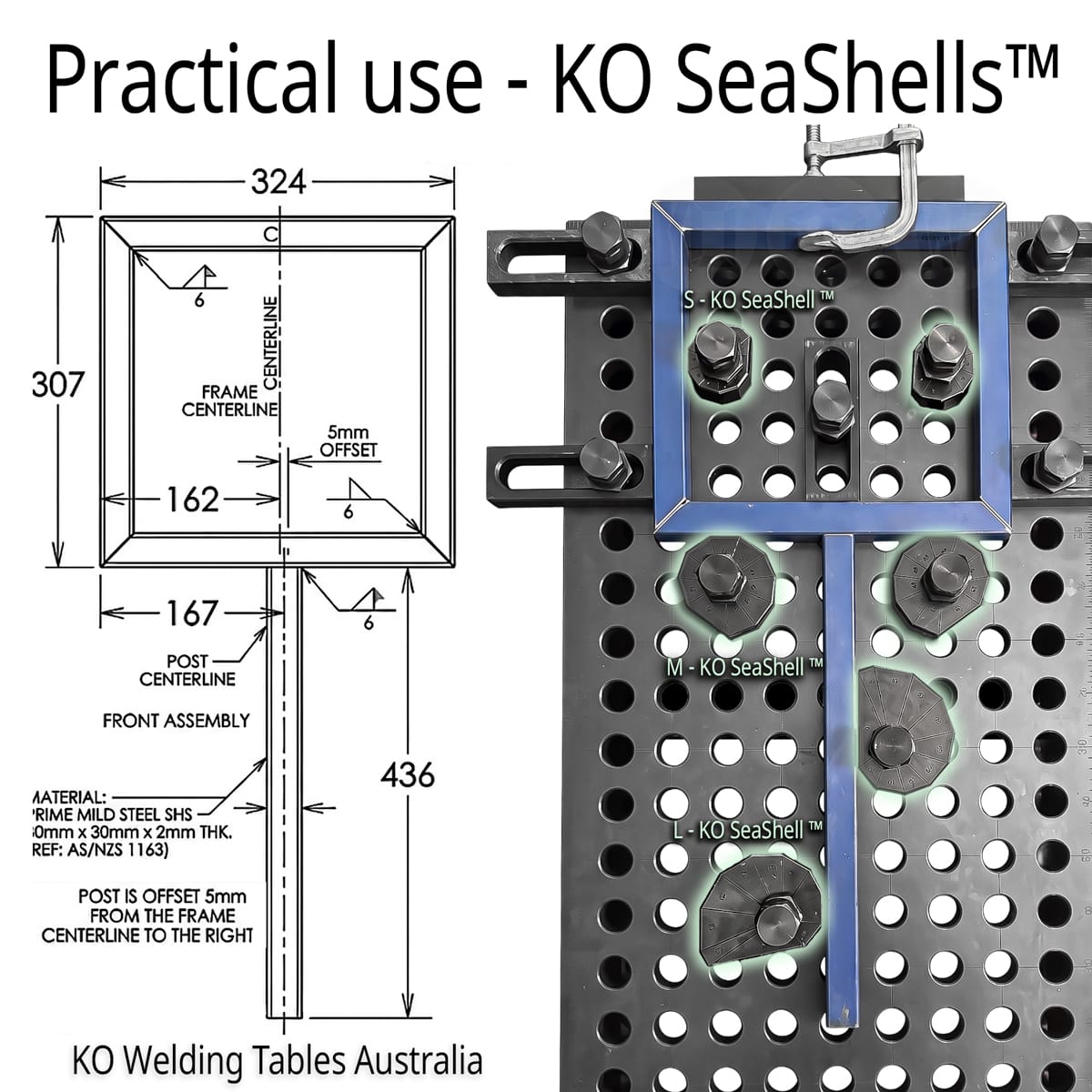

The trick is simple: each SeaShell has a 28mm center hole, and the measurement from the center of that hole to each flat face is a known offset. Lock it down with your pins, rotate to the indexed face you need, and you’ve got a repeatable guide stop that just works.
- Place in your desired position.
- Use pins / ball locking pins to secure SeaShell Stop to the table.
- Rotate to the indexed face you want. You’ve now created a fixed guide stop that wont budge!
Set and forget for a multitude of jobs.
Why they exist
We couldn’t find a simple stop system readily available in Australia that let you frame-up precisely using indexed mm offsets without constantly re-measuring. We went through 10 different versions over more than a year to land on a 3-piece SeaShell system that keeps 10 indexed faces per piece while covering the practical range.

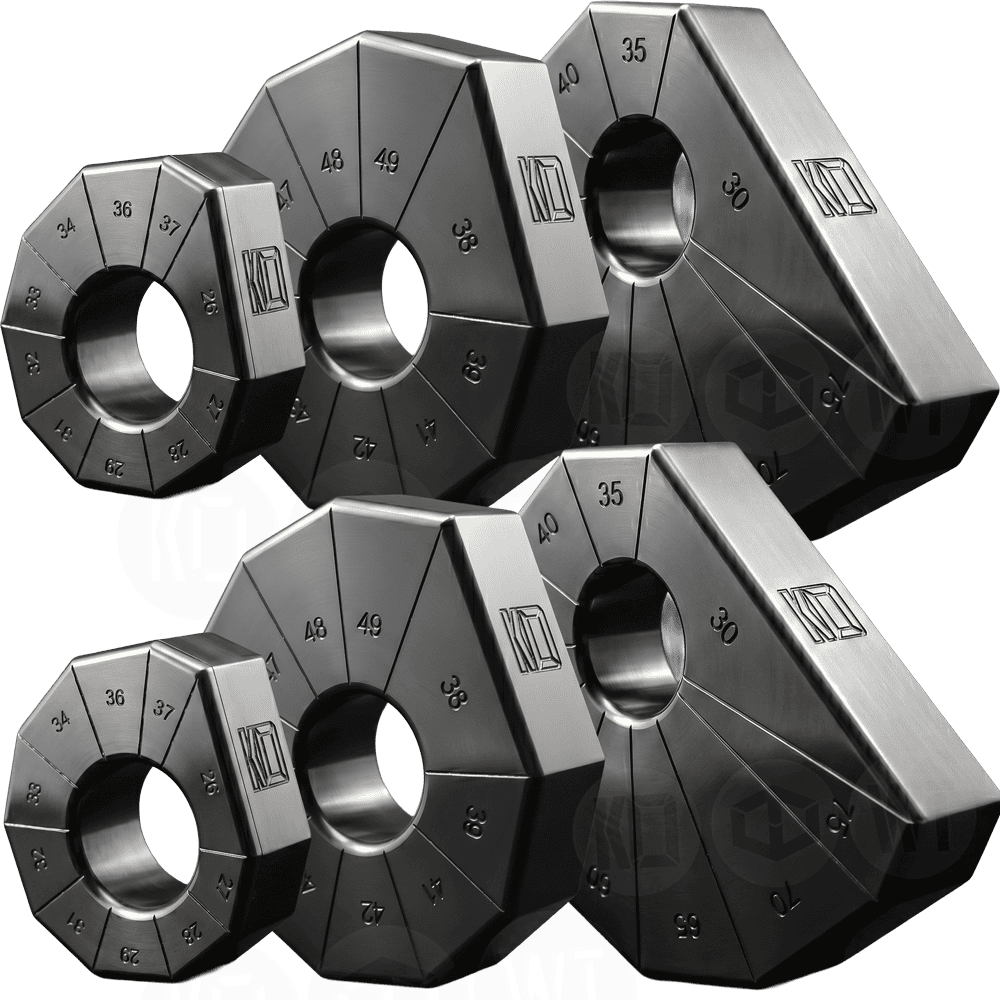

Whats included (Set of 6)
2x each of 3 SeaShell sizes (6 pieces total):

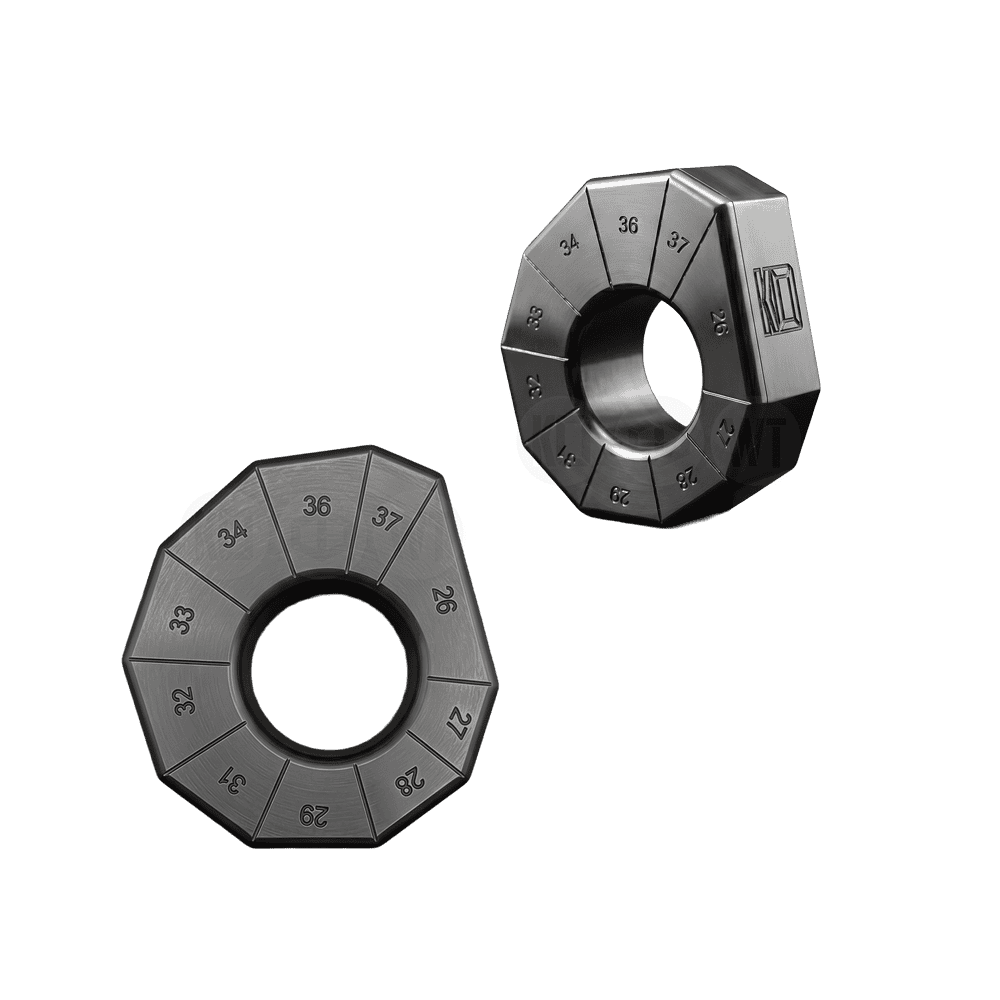

S – KO SeaShell ™ Stop (26-37mm) | K28
SKU (single): K28-STP-11
Indexed faces (hole center to face): 26, 28, 29, 31, 32, 33, 34, 36, 37mm
Note: missing the 5mm marks on purpose see: L – KO SeaShell ™ Stop (30-75mm) | K28 below.

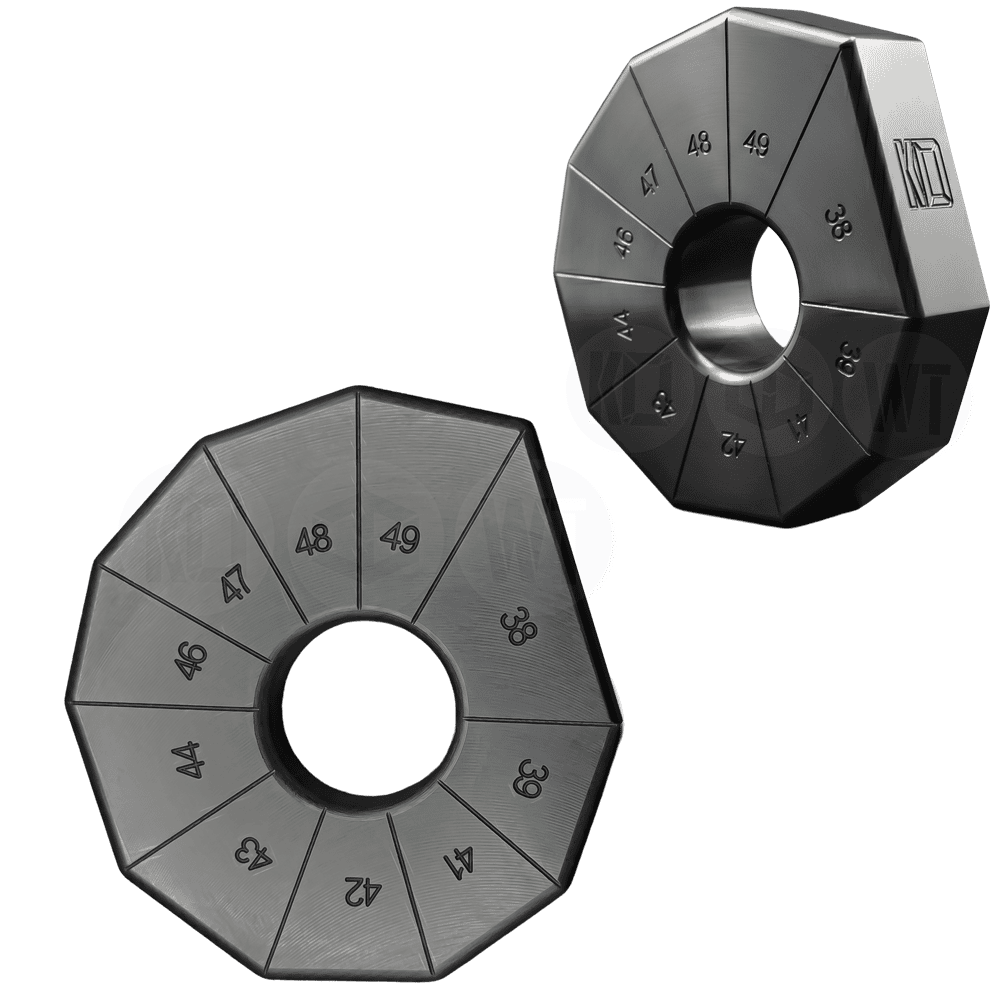

M – KO SeaShell ™ Stop (38-49mm) | K28
SKU (single): K28-STP-12
Indexed faces (hole center to face): 38, 39, 41, 42, 43, 44, 46, 47, 48, 49mm
Note: missing the 5mm marks on purpose. see: L – KO SeaShell ™ Stop (30-75mm) | K28 below.

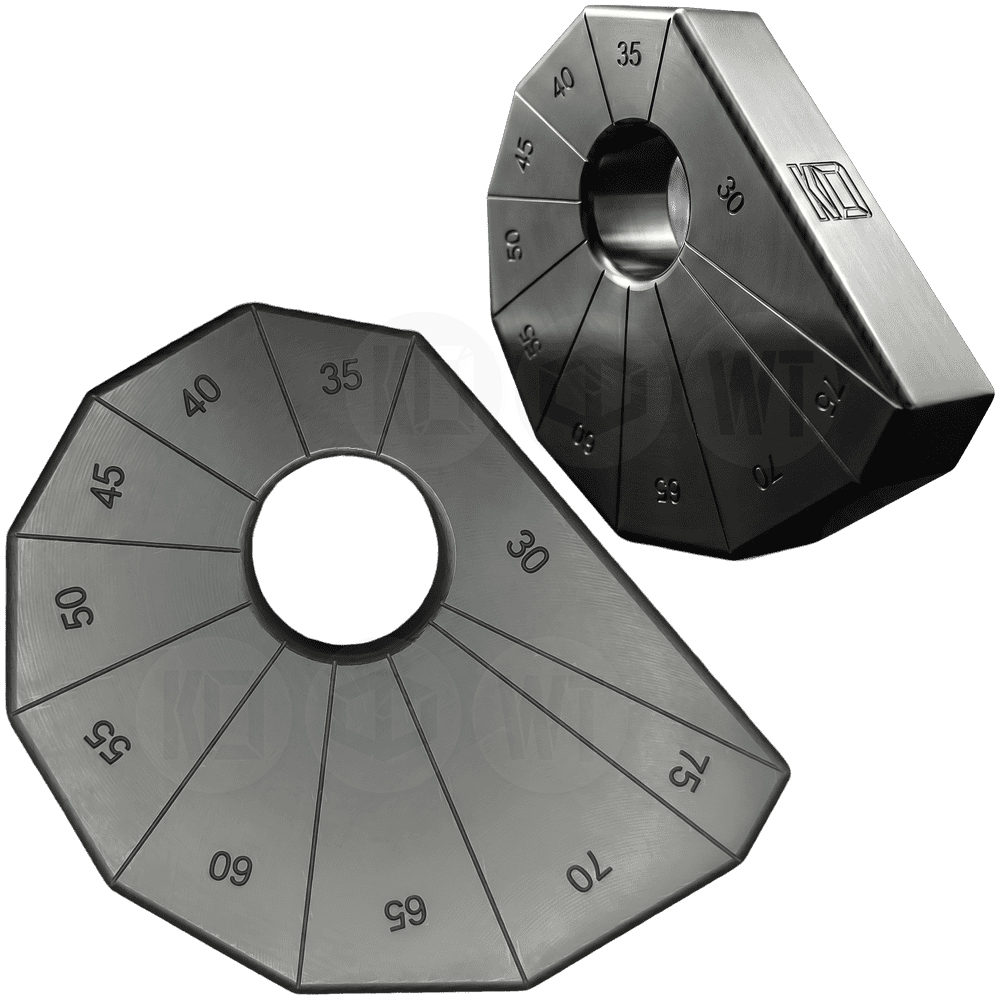

L – KO SeaShell ™ Stop (30-75mm) | K28
SKU (single): K28-STP-13
Indexed faces (hole center to face): 30, 35, 40, 45, 50, 55, 60, 65, 70, 75mm
Materials and finish
- Material: #35 steel
- Finish: Silky smooth/ burnished treatment
- Features: rounded holes and corners
Load / durability (in-house testing)
With pins fully locked, the setup was tested under a hydraulic press to over 1 tonne of horizontal force without failure in the stop/pin interface.
Measurements
(add Picture)
