DESCRIPTION

Same use as our Standard Ball locking pin, but three times faster!

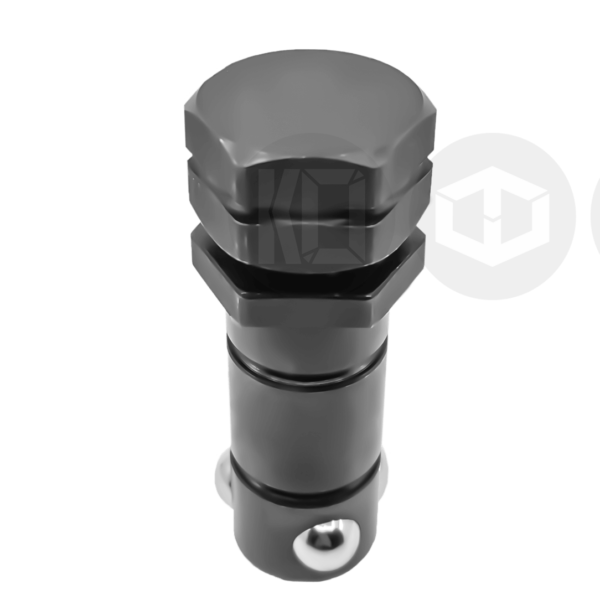

The KO QuickHex Pin is a rapid-locking fixture pin designed for the K28 modular table system. It replaces the Standard Ball Locking Pin and allows fixtures to be secured or released with a single twist – no tools required. Ideal for fast setup workflows when swapping stops, angles, risers and positioning blocks.

Even a quick “nip” with your hand is tight enough for most cases (use a 34mm socket or a shifter for a super tight lock)

Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness. Therefore this Pin allows you to attach any one fixture to your table (toggle clamps/stops/angles/large angles/blocks). Or with creativity: any two fixtures together.

True meaning of modular!

DIRECTIONS
1. Place fixture in desired position.

2. Push pin in holes.

3. Twist top by hand to lock or 34mm socket or a shifter for a tight lock.
